Home / Grain Inspection & Grading


Grain Inspection & Grading
(Triers, Probes & Samplers)


Our Product

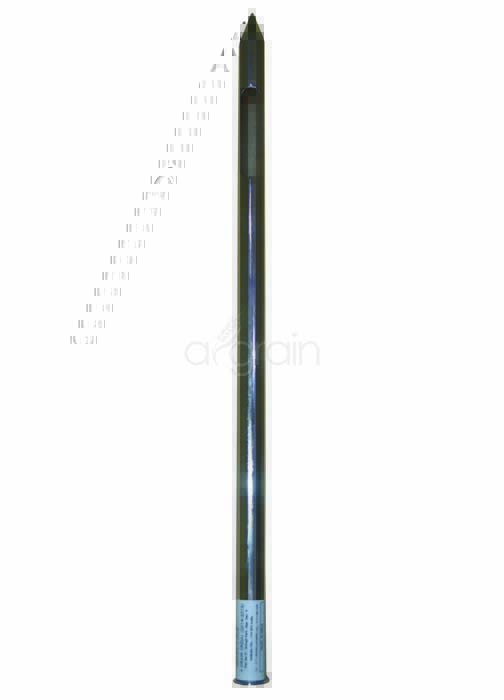

Nobbe Trier
(Model No : GIG-19)


Grain Sampler,Nobbe Trier
Specifications:


Length : 20" or 30"
Length of Opening : 2.5 "
Available in brass or stainless steel

Nobbe type seed trier is used for sampling free-flowing, small seeded crops in bags or penetrable containers.It is ideal for clovers, timothy, brassicas, fine grasses such as bluegrass, and small vegetable seeds.It is inserted horizontally into the container and the sample pours out of the open end.

Bag Triers / Parkhi
(Model No : GIG-20)


Bag Sampler,Parkhi
Specifications:


Available in sizes of 9",12",14"
Assorted sizes available for sampling flower, vegetable , coffee beans and sunflowers.
Bag Triers can be customsied to user requirements.
Made of Brass or chrome plated Mild Steel

Our Bag Triers assist in the collection of samples from your grain and seed bags.

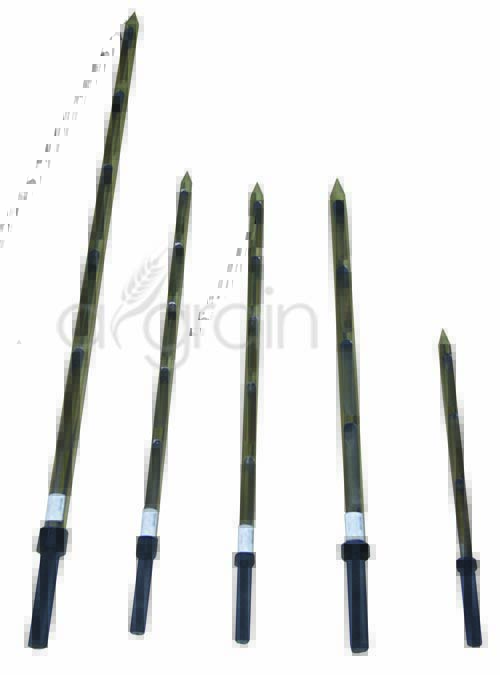

Sampling Probes
(Model No : GIG-21)


Grain Sampling Probe,Bag Trier
Specifications:


1 Single Tube Size
Trier Length 900 mm 900 mm 500 mm
Outer Dia 37.5 mm 25.0 mm 25.0 mm
Openings 4 5 5


2 Double Tube Size
Trier Length 900 mm 1500.0 mm
Outer Dia 25.0 mm 37.5 mm
Openings 5 5

Grain Sampling probes can be customsied to user requirements.
Made of Brass or chrome plated Mild Steel
