Seed Germinator


Our Product

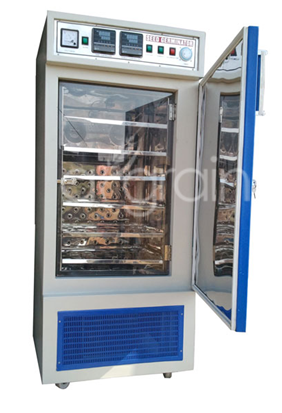

Seed Germinator ( Single Chamber)
(Model No. GE-04A)


Seed Germinator,Germination Equipment,Germination Chamber



Specifications:

Capacity 10 cubic feet ( Apprx.)
Chamber Size 550 x 950 x 550 mm ( LxBxH)
No of Trays 5-7 Stainless Steel Trays
Sensor Type Hygroclip
Display Bright Seven Segment Display
Temp. Range 10°C - 60°C±1°C
Humidity Range upto 95% RH ± 5%
Humidity Generator Heated water reservoir
Controller Type Microcontroller Based
Compressor Hermetically sealed type of standard make
Evaporator Finned Tubes
Illumination Control Programmable
Memory
Interfacing Port
Power 220v, 50 Hz A.C

Special Features:

  • Low power consumption
  • Inner Chamber made of Stanless Steel
  • Outer Chamber made of powder coated Mild Steel
  • Multiperforated Stainless steel with adjustable positions
  • Audio Visual alarm for temp/humidity deviation
  • User Friendly programming features for temp,humidity and illumination settings
  • Inner transparent door facilitates observation of samples without disturbing the test chamber conditions
Seed Germinator ( Single Chamber , PID Controlled)
(Model No. GE-04B)


Seed Germinator PID Controlled,Controlled Climatic Chamber



Specifications:

Capacity 10 cubic feet ( Apprx.)
Chamber Size 550 x 950 x 550 mm ( LxBxH)
No of Trays 5-7 Stainless Steel Trays
Sensor Type Hygroclip
Display 2 x 16 Col LCD Display
Temp. Range 10°C-60°C±1°C
Humidity Range upto 95%RH ±5%
Humidity Generator Heated water reservoir
Controller Type PID Algorithm based
Compressor Hermetically sealed type of standard make
Evaporator Finned Tubes
Illumination Control Programmable
Memory Datalogging facility to store upto 1000 readings
Interfacing Port RS 232 (optional)
Power 220v,50Hz A.C

Special Features:

  • Low power consumption
  • Inner Chamber made of Stanless Steel
  • Outer Chamber made of powder coated Mild Steel
  • Multiperforated Stainless steel with adjustable positions
  • Audio Visual alarm for temp/humidity deviation
  • User Friendly programming features for temp,humidity and illumination settings
  • Inner transparent door facilitates observation of samples without disturbing the test chamber conditions
  • Also available Model No GE-04C with similar specifications but humidity generation through misting nozzles and misting pump.
  • Dimensions and other features can be customised according to user requirements

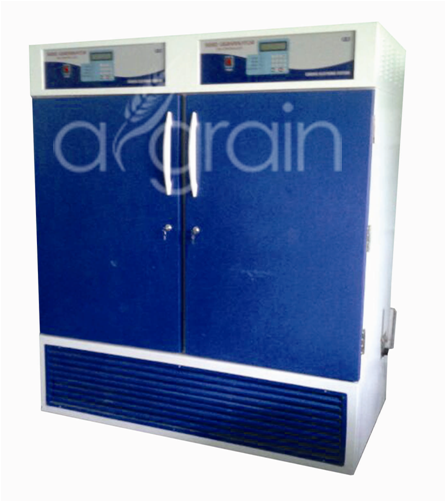

Seed Germinator ( Double Chamber)
(Model No. GE-05A)


Single Double Seed Germinator,Controlled Environmental Chamber



Specifications:

Capacity 10 cubic feet ( Apprx.) Each Chamber
Chamber Size 550 x 950 x 550 mm ( LxBxH)
No of Trays 5-7 Stainless Steel Trays
Sensor Type Hygroclip
Display Bright Seven Segment Display
Temp. Range 10°C - 60°C±1°C
Humidity Range upto 95%RH±5%
Humidity Generator Heated water reservoir
Controller Type Microcontroller Based
Compressor Hermetically sealed type of standard make
Evaporator Finned Tubes
Illumination Control Programmable
Memory
Interfacing Port
Power 220v, 50Hz A.C

Special Features:

  • Low power consumption
  • Inner Chamber made of Stanless Steel
  • Outer Chamber made of powder coated Mild Steel
  • Multiperforated Stainless steel with adjustable positions
  • Audio Visual alarm for temp/humidity deviation
  • User Friendly programming features for temp,humidity and illumination settings
  • Inner transparent door facilitates observation of samples without disturbing the test chamber conditions
Seed Germinator ( Double Chamber , PID Controlled)
(Model No. GE-05B)


Double Chamber Seed Germinator PID Controlled



Specifications:

Capacity 10 cubic feet ( Apprx.) Each Chamber
Chamber Size 550 x 950 x 550 mm ( LxBxH)
No of Trays 5-7 Stainless Steel Trays
Sensor Type Hygroclip
Display 2 x 16 Col LCD Display
Temp. Range 10°C - 60 °C±1°C
Humidity Range upto 95%RH ±5%
Humidity Generator Heated water reservoir
Controller Type PID Algorithm based
Compressor Hermetically sealed type of standard make
Evaporator Finned Tubes
Illumination Control Programmable
Memory Datalogging facility to store upto 1000 readings
Interfacing Port RS 232 (optional)
Power 220v, 50Hz A.C

Special Features:

  • Low power consumption
  • Inner Chamber made of Stanless Steel
  • Outer Chamber made of powder coated Mild Steel
  • Multiperforated Stainless steel with adjustable positions
  • Audio Visual alarm for temp/humidity deviation
  • User Friendly programming features for temp,humidity and illumination settings
  • Inner transparent door facilitates observation of samples without disturbing the test chamber conditions
  • Also available Model No GE-05C with similar specifications but humidity generation through misting nozzles and misting pump.
  • Dimensions and other features can be customised according to user requirements

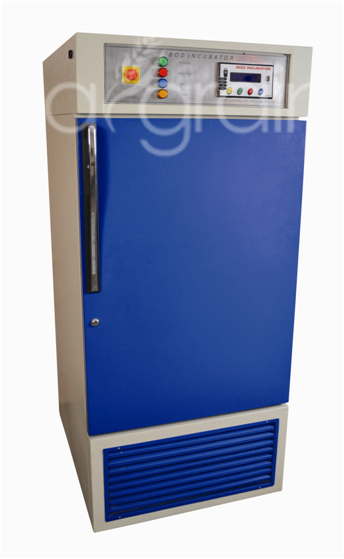

BOD Incubator
(Model No. GE-06A)


BOD Incubator,Seed Germinator Bacteriological Incubator



Specifications:

Capacity 10 cubic feet ( Apprx.)
Chamber Size 550 x 950 x 550 mm ( LxBxH)
No of Trays 5-7 Stainless Steel Trays
Sensor Type PT-100
Display Bright Seven Segment Display
Temp. Range 5°C - 60 °C±1 °C
Humidity Range
Humidity Generator
Controller Type Microcontroller Based
Compressor Hermetically sealed type of standard make
Evaporator Finned Tubes
Illumination Control Programmable
Memory
Interfacing Port
Power 220v, 50Hz A.C

Special Features:

  • Low power consumption
  • Inner Chamber made of Stanless Steel
  • Outer Chamber made of powder coated Mild Steel
  • Multiperforated Stainless steel with adjustable positions
  • Audio Visual alarm for temperature deviation
  • User Friendly programming features for temperature and illumination settings
  • Inner transparent door facilitates observation of samples without disturbing the test chamber conditions

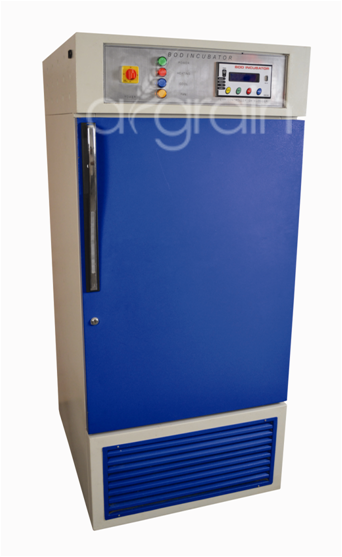

BOD Incubator( PID Controlled)
(Model No. GE-06B)


BOD Incubator PID Controlled,Bacteriological Incubator



Specifications:

Capacity 10 cubic feet ( Apprx.) Each Chamber
Chamber Size 550 x 950 x 550 mm ( LxBxH)
No of Trays 5-7 Stainless Steel Trays
Sensor Type PT-100
Display 2 x 16 Col LCD Display
Temp. Range 5°C - 60 °C±1°C
Humidity Range
Humidity Generator
Controller Type PID Algorithm based
Compressor Hermetically sealed type of standard make
Evaporator Finned Tubes
Illumination Control Programmable
Memory Datalogging facility to store upto 1000 readings
Interfacing Port RS 232 (optional)
Power 220v, 50Hz A.C

Special Features:

  • Low power consumption
  • Inner Chamber made of Stanless Steel
  • Outer Chamber made of powder coated Mild Steel
  • Multiperforated Stainless steel with adjustable positions
  • Audio Visual alarm for temperature deviation
  • User Friendly programming features for temperature and illumination settings
  • Inner transparent door facilitates observation of samples without disturbing the test chamber conditions
  • Dimensions and other features can be customised according to user requirements.

Note: We can also provide Walk In Chamber , Ageing Chambers , Plant Growth Chambers , Controlled Seed Storage Chambers, Climatic Chambers as per user requirements.
